Hamada 1

Workflow information

  • Documentation page:

  • Version: 1.0

  • Date of record creation: 2024-12-16

  • Date of upload to firebench: 2024-12-16

  • Version/tag/commit firebench: 0.3.2a2

Configuration

  • Rate of spread model: Hamada 1

  • Number of point Sobol: 2^10

Specific inputs

  • The environmental variables chosen for this test are:

    • WIND_SPEED from 0 to 15 m s-1,

    • DIRECTION from 0 to 360 deg,

    • BUILDING_RATIO_FIRE_RESISTANT from 0 to 1.

Hardware/software description

  • Apple M2, macOS 14.7.1

  • Python 3.10.8

Results

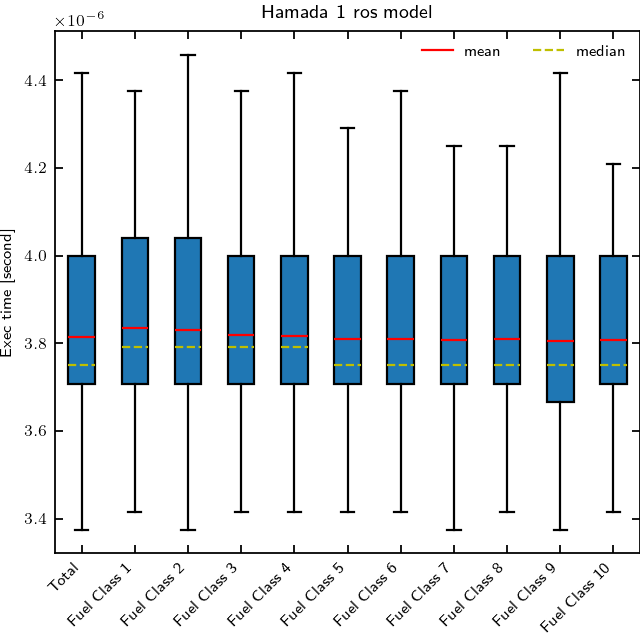

Fig.1 shows the execution time aggregated for all fuel classes (total) and for each fuel class.

blockdiagram

Fig. 1 : Execution time boxplot for Hamada 1 rate of spread model using WUDAPT_urban fuel model. Fliers points not shown on the figure.

Data

  • path to data:

  • 01_generate_data.py: cc9baf41221270cb9871160506871a15ced54f5b8bf2afa16360e07495702374

  • 02_plot_data.py: 66eb5db4429df603ea34c0711ae79083431f9759339bb4992c8525a356ebef1b

  • 03_create_record.py: ae4e64e42bbd0d1057c7ff813f87e311c61db7804f565c89b110a47c78ea6ed2

  • firebench.log: e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855

  • output_data.h5: 1940474aa191fd35e1dc093f2c9de1a506adbd74fe8838e8070370b469708bc3

  • efficiency_box.png: da87879e17245cbd5b0bb829492cccb33a1c5630234d3ce1a2a62e2f438383c0
